195L Cryogenic Liquid Nitrogen Dewar Gas Cylinder


Cryogenic Dewar Cylinder Parameters:

ModelDPL450-80-2.3DPL450-175-1.38DPL-450-175-2.3DPL-450-195-1.38DPL-450-195-2.3DPL-210-1.38DPL-450-210-2.3DPL-450-210-2.88
Nominal volume80L175L175L195L195L210L210L210L
Effective volume75L164L164L183L183L197L197L197L
Size(mm)510*1026510*1557510*1557510*1673510*1673510*1767510*1767510*1767
Working Pressure(Mpa)2.31.382.31.382.31.382.32.88
Safety Valve Opening pressure(Mpa)2.411.592.411.592.411.592.413.45
Deputy safety valve take-off pressure(Mpa)3.62.413.62.413.62.413.65.6
Evaporation rate(LIN) %/d<2.9<2.1<2.1<2.0<2.0<2.0<2.0<2.0
Empty weight (kg)≈82≈116≈142≈122≈147≈125≈156≈178
Maximum filling weight(kg)LOX≈85≈187≈187≈209≈209≈224≈224≈224
LIN≈60≈132≈132≈147≈147≈158≈158≈158
LAR≈105≈230≈230≈256≈256≈276≈276≈276
LNG≈32≈70≈70≈78≈78≈84≈84≈84
LCo2≈77/≈175/≈196/≈211≈211


Cryogenic Dewar Cylinder Drawing:
195L Cryogenic Liquid Nitrogen Dewar Gas Cylinder

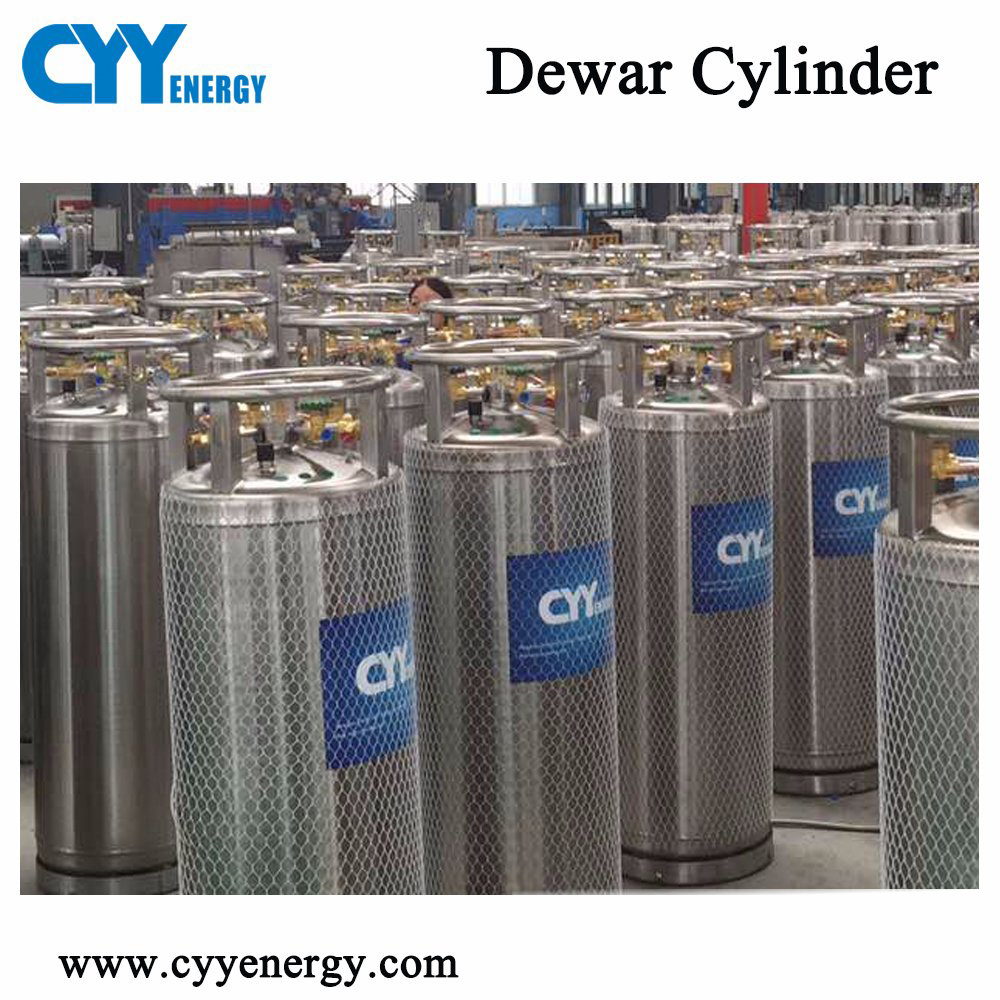

Cryogenic Dewar Cylinder Pictures:

195L Cryogenic Liquid Nitrogen Dewar Gas Cylinder



Cryogenic Dewar Cylinder Package and Loading:

195L Cryogenic Liquid Nitrogen Dewar Gas Cylinder
195L Cryogenic Liquid Nitrogen Dewar Gas Cylinder
